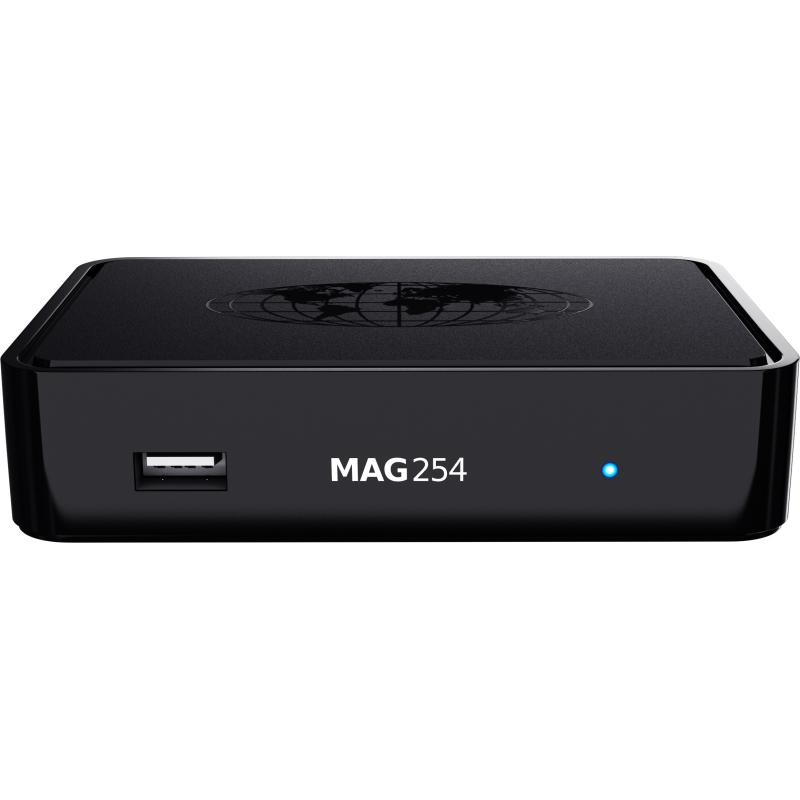

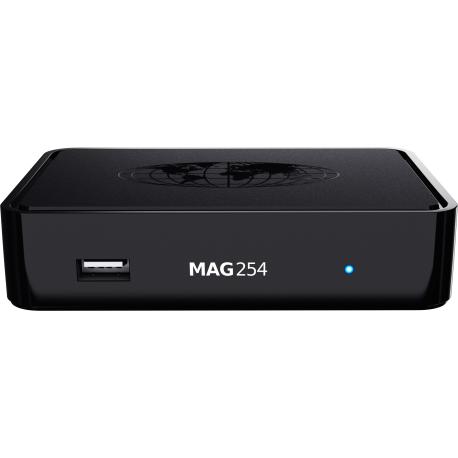

MAG 254 IPTV

Variety of sources and contents

The MAG 254 decoder provides access to numerous videos and multimedia content, from the Internet, IP operators, local networks (UPnP, Samba).

100% compatible with your desires

This box supports all current formats of audio and video (up to 3D format), subtitles, image resolutions, selection of audio tracks, playlist ...

A widely shared choice

This IPTV box is marketed in more than 100 countries and has been recognized by market specialists.

Maximum user comfort

Learn how to remotely control not only your case but also your other connected devices thanks to the multi-purpose remote control. You can also use a wireless keyboard and mouse with this box (not included).

MAG 254 Technical Specifications

• Processor: STi H207
• RAM 512 Mo
• Operating system: Linux 2.6.23
• Integrated multimedia portal with IPTV (WebKit) function: HTTP 1.1, HTML 4.01 XHTML 1.0 / 1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
• Weight: 190g
• Dimensions : 127 x 87 x 30 mm
• Compatible Applications / Middleware: Stalker, OFT-Media, Netup, SmartLabs, Beenius

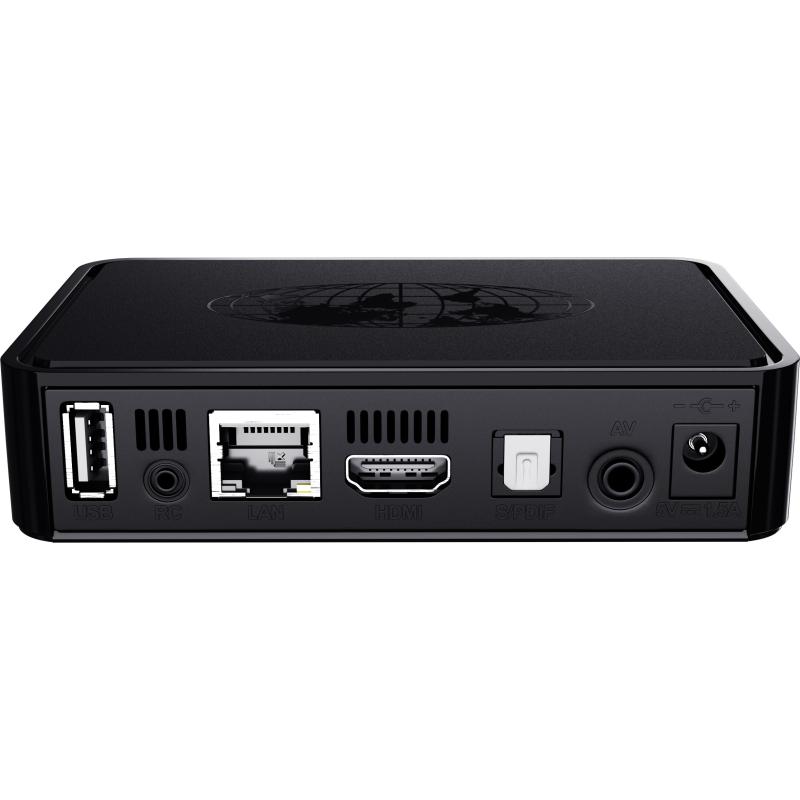

• Audio interface: S / PDIF output, HDMI 1.4, Composite + stereo A / V
• Ethernet port 100 Mb / s
• 2 USB 2.0 ports (including 1 to insert a Wifi key, not included)
• Sources of multimedia contents: PC and NAS in local network, Media Stream protocol (RTSP, RTP, UDP, IGMP, HTTP), USB media
• Audio сodecs: MPEG-1 layer I / II, MPEG-2 layer II, MPEG-2 layer III (mp3)
• Audio formats: MP3, MPA, M4A, Ogg, WAV
• Video modes: 1080i, 1080p, 720p, 576p, 480rr, PAL, NTSC
• Video сodecs: MPEG1 / 2 MP @ HL, H.264 HP @ level 4.1, MPEG4 part 2 (ASP), VC1 video, XviD; HD video compatible (from 40 Mbit / s)
• Video formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
• Image formats: JPEG, PNG, BMP, GIF, RAW
• Subtitles: DVB, SRT, text MKV
• Playlist formats: M3U

Content of the MAG Box 254

• MAG 254 Set-Top Box
• Installation guide
• Mini cable jack to RCA (A / V)
• Power supply 5V 2A

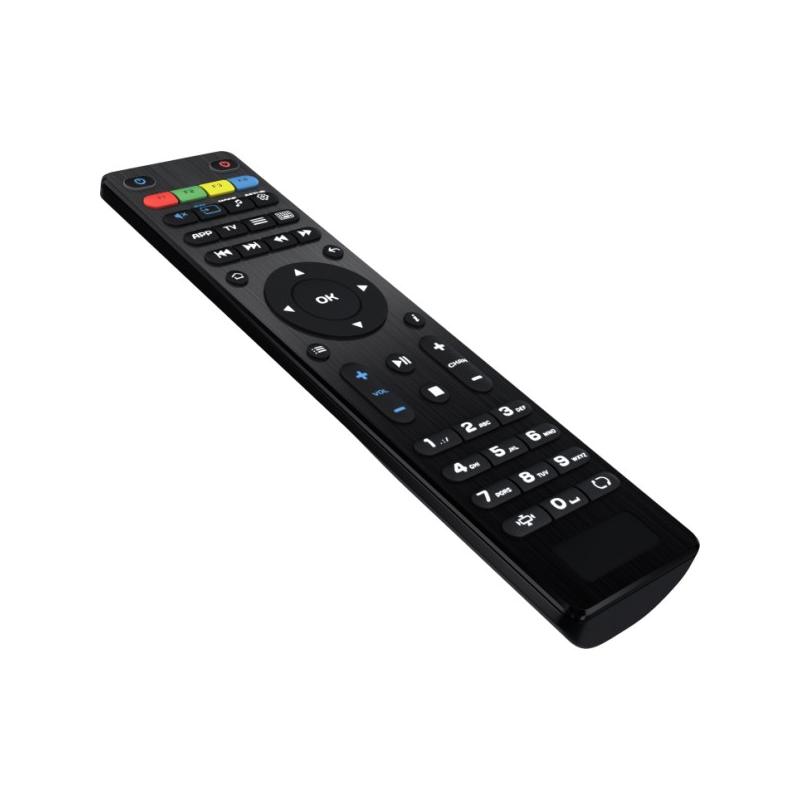

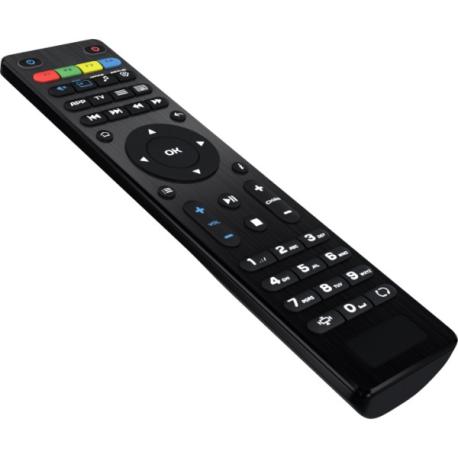

• Remote control
