HikVision DS-KIS702 |Villa Two Wire Kit

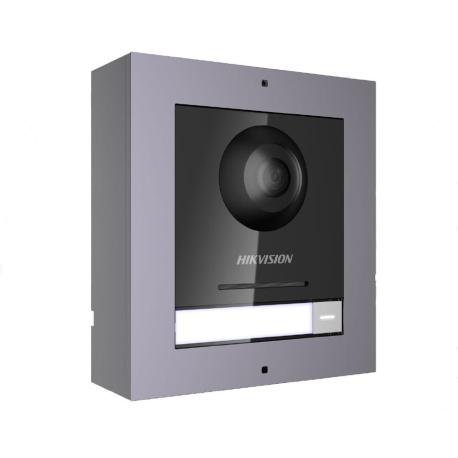

Door station/System parameters

• ProcessorEmbedded microcontroller
• Operation systemEmbedded Linux operation system
• Operation modeOne touch key

Door station/Video parameters

• Camera 2MP super definition camera
• Resolution Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480
• Night vision Support low light and IR light supplement mode
• Backlight compensationSupport
• Digital noise reductionSupport
• WDRTrue WDR
• Field of view Horizontal 180°, vertical 96°
• Video Compression StandardH.264
• Stream Main stream: 1080p@30fps, 720p@30fps
• (configurable); sub stream: D1
• Motion detectionSupport
• Flash-avoid frequency50 Hz, 60 Hz

• Door station/Audio parameters

• Audio inputBuilt-in omnidirectional microphone
• Audio outputLoudspeaker, 20 cm sound effect > 80 db
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps
• Audio intercomFull-duplex two-way audio intercom

• Door station/Device interfaces

• RS-485 1 (inter-module connection)
• Alarm input 1

• Door station/General

• Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Working humidity10% to 90%
• InstallationWall mounting
• Protection level IP 65
• Button1
• Power input 24 VDC two-wire power supply (< 16 W)

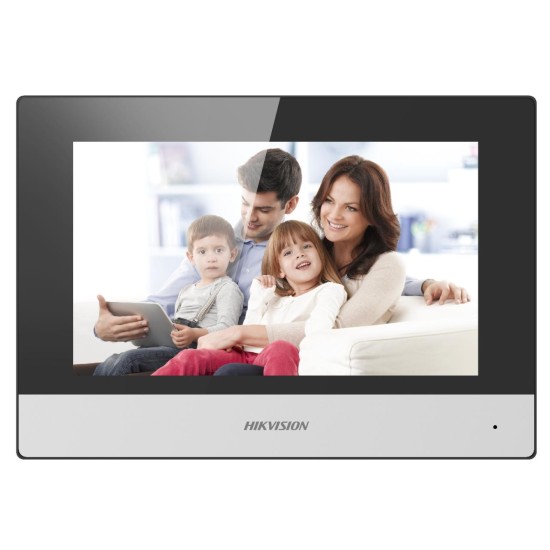

• Indoor station/System parameters

• Operation systemEmbedded Linux operation system
• Processor basic frequency1 GHz
• Memory128 MB
• Flash 16 MB

• Indoor station/Display parameters

• Display screen7-inch TFT LCD
• Display resolution1024 × 600
• Operation method Capacitive touch

• Indoor station/Audio parameters

• Audio inputBuilt-in omnidirectional microphone
• Audio output
• Built-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Volume Local or software control
• Audio compression standardG.711 U, G.711 A
• Audio compression Rate64 Kbps

Indoor station/Network parameters

• Wired network Two-wire network
• Wireless networkWi-Fi 802.11b/g/n
• Protocol TCP/IP, SIP, RTSP

Indoor station/Device interfaces

• Network interface Two-wire interface
• RS-4851
• Alarm input 8 zones alarm input
• Relay output2
• TF cardSupport, Max. 32 GB

Indoor station/General

• Power supply Two-wire
• Power consumption≤ 6 W
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90%
• Dimensions (W × H × D) 200 mm × 140 mm × 15.1 mm (7.87" × 5.51 × 0.59")"

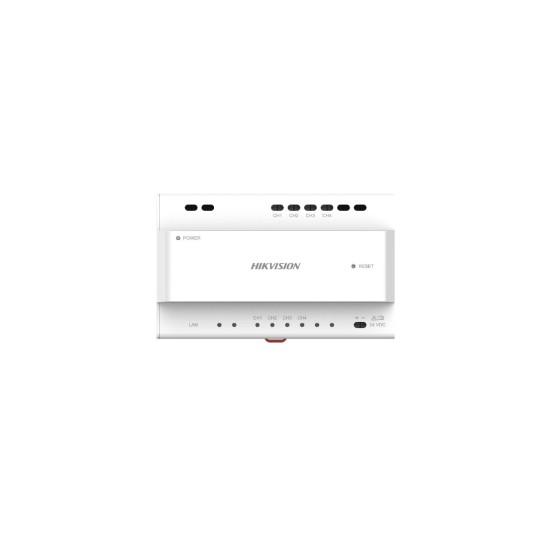

Video Audio Distributor/Interfaces

• Network interface 1 RJ45
• Two-wire interface 4
• Signal indicator 4
• Power indicator 1
• Réinitialiser 1

Video Audio Distributor/General

• Power supply Two-wire mode
• Power consumption CH1 to CH3＜6 W, CH4＜8 W
• Working temperature-10 °C to +50 °C (14 °F to +122 °F)
• Working humidity10% to 90%
• Digital noise reduction Support
